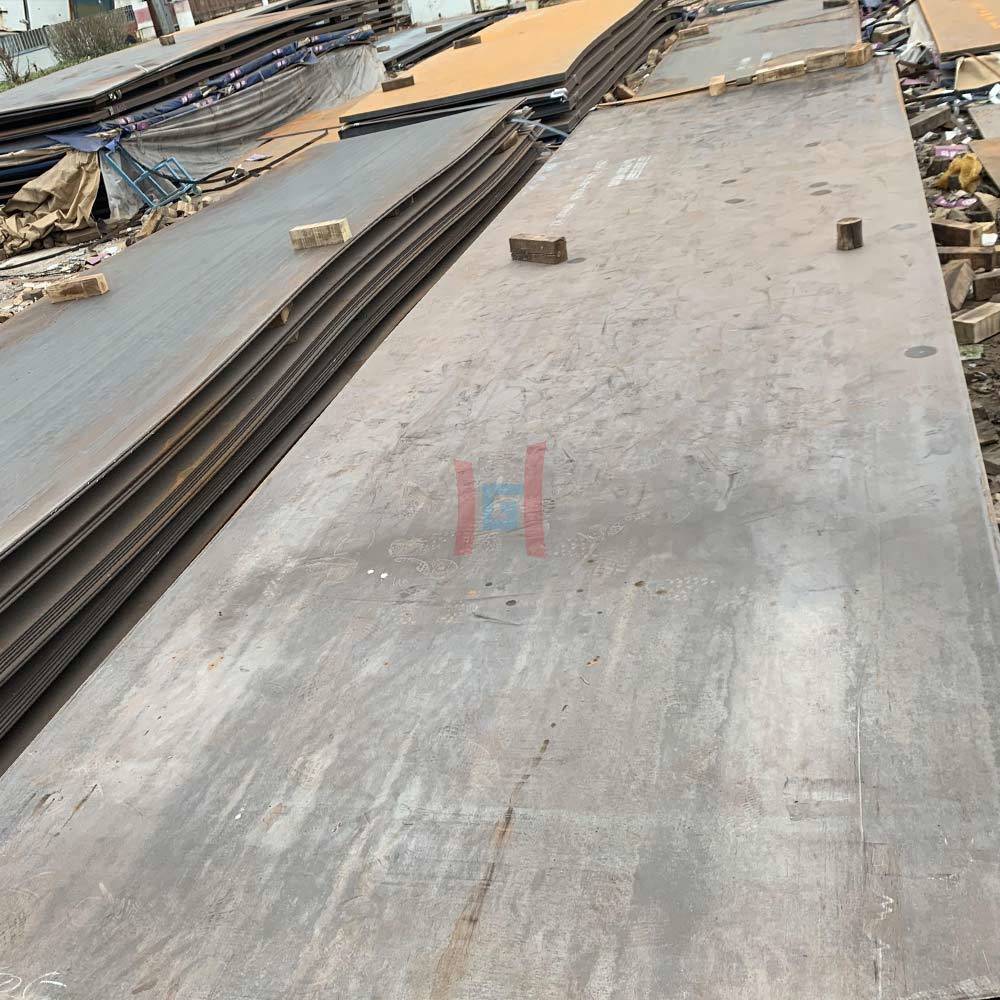

NM400/NM/450/NM500

NM500 carbon steel plate offers outstanding hardness and durability, making it ideal for heavy-duty use in mining, construction, and manufacturing. Whether you're sourcing NM500 carbon steel plate or seeking NM500 carbon steel plate spots for fast delivery, it's essential to compare with related grades like NM450 and NM400. NM400 offers a slightly lower hardness for cost-effective wear resistance, while NM450 balances toughness and formability. Trusted brands provide consistent quality across all grades, ensuring reliable performance. Staying updated on market terms like “spots NM500 carbon steel plate” helps you secure stock quickly. Always choose certified products to ensure reliable mechanical properties.

Chemical Composition,/%
Grade	C	Si	Mn	P	S	Cr	Ni	Mo	Ti	B	AlS
Grade	≤									Range	≥
NM360	0.25	0.70	1.60	0.025	0.015	0.80	0.50	0.50	0.05	0.0005-0.006	0.01
NM400	0.30	0.70	1.60	0.025	0.010	1.00	0.70	0.50	0.05	0.0005-0.006	0.01
NM450	0.35	0.70	1.70	0.025	0.010	1.10	0.80	0.55	0.05	0.0005-0.006	0.01
NM500	0.38	0.70	1.70	0.02	0.010	1.20	1.00	0.65	0.05	0.0005-0.006	0.01

Mechanical Properties
Grade	Thickness/mm	Rm/Mpa	A50/%	-20℃KV2/Jitudinal)	HBW
NM360	≤80	≥1100	≥12	≥24	330-390
NM400	≤80	≥1200	≥10	≥24	370-430
NM450	≤80	≥1250	≥7	≥24	420-480
NM500	≤70	≥1300	≥7	≥24	480-520

Hard 400 450 550 500 600 Wear Resistant Steel From Swedish Steel Plate

Wear-Resistant Steel Plate is produced from processes of hot rolling, cutting into length, and heat treating. The products are characterized by small thickness, good flatness, outstanding wear resistance, excellent toughness, good weldability, good machinability, consistent properties, and quality.

AR500 Steel NM500 Steel Wear Plate

AR500 Steel

Wear Resistant Carbon Steel Plate AR400 AR450 AR500 0.9mm Carbon Steel Plate ar500 Steel Plate

The working principle of wear resistant steel plate is mainly reflected in the formation of its hardened layer. The surface of the steel plate usually forms a high-hardness outer layer through heat treatment or surface hardening process. This high-hardness surface can effectively resist the friction between the material and the surface and reduce surface damage caused by wear.

Mild Steel Sheet Hardness 400 450 500 550 600 Wear Resistant Steel Plate Sheets 360 400 450 500 Ar500

The Cheapest Wear resistant steel plate in china is widely used in mining, metallurgy, coal, construction and other industries because of its excellent wear resistance, which can effectively extend the service life of equipment. Different working environments and load requirements are suitable for different types of wear-resistant steel plates. When choosing, choose the appropriate steel plate hardness and material according to the specific conditions of use, such as temperature, impact, friction, etc.

Ar500 Ar360 Ar400 Ar400 500 Ar550 Hb Wear Steel Plate Wear Resistant Steel Plate

Finally, as a professional wear resistant steel plate supplier and manufacturer, the company has established a complete after-sales service system. Whether it is product selection, technical consultation, or later repair and replacement, we can provide timely and professional support to ensure that customers have no worries during use. WEAR PLATES COMPARASION TABLE :GBWUYANGJFESUMITOMODILLIDURHBWDelivery statusNM360WNM360JFE-EH360AK340——360Q+TNM400WNM400JFE-EH400AK400400V400Q+TNM450WNM450JFE-EH450AK450450V450Q+TNM500WNM500JFE-EH500AK500500V500Q+TNM550WNM550——————550Q+TNM600WNM600——————600Q+TSteel plate nm500 is equal to ar500 ,their executive standard are different .But their chemical composition and machenical property are almost the same .Their whole quality are 96% similar .If you want to know more about steel plate NM500 ,please do not hesitate to contact with us ;We welcome friends all over the who are interested in our China Wear Plates .

20mm Thick Hb450 Wear Resistant Steel Sheet low cost steel plate supplier spot

Wear resistant steel plates with reasonable structures can maintain stable performance in long-term operation, significantly reduce replacement frequency and maintenance times, reduce operating costs, and improve equipment efficiency. AR450 steel offers greater surface hardness than AR400, with good ductility, formability, and impact resistance.

AR400 AR450 AR500 AR700 High strength wear-resistant steel hot rolled steel plate

Wear resistant steel plate material is a special steel with excellent wear resistance and good mechanical strength. It is widely used in high-wear working conditions such as mines, engineering machinery, and material transportation. Its production process is more complicated than that of ordinary steel plates, mainly including key steps such as smelting, composition control, heat treatment, and surface strengthening.

High quality AR360 AR450 AR550 weathering steel/acid resistant hot rolled wear-resistant steel

Wear resistant steel plate is a special steel with high hardness and excellent wear resistance. Its surface treatment process is directly related to the service life and stability of the material in practical applications AR450 steel offers greater surface hardness than AR400, with good ductility, formability, and impact resistance. Its tensile strength is 214 KSI, its yield strength is 181 KSI, and hardness ranges from 429-495 Brinell.

5mm Thickness AR400 Steel Sheet 1500mm Impact & Wear Steel

Factory Price High Manganese Wear-Resistant Steel

AR450 High manganese wear resistant steel is an alloy steel with an austenitic structure, which is often in a soft state but has extremely strong work hardening ability. When subjected to repeated impact or friction, its surface will harden rapidly to form a hard protective layer, while the interior still maintains good toughness. This self-hardening mechanism enables it to maintain a long service life even in harsh environments. Mechanical and Physical Properties

NM500 High Toughness 23mm Wear Resistance Steel Sheet

Choosing the best wear resistant steel plate means choosing efficiency and stability. In the future, with the continuous advancement of technology, the performance of wear-resistant steel will be further improved, bringing more surprises to the industrial world

NM450 Steel 38mm Thickness 1600mm Width Hot Rolled Wear Resistance Steel Sheet Cut-to-Size Processing Services ASTM AISI JIS BS
